/Designed to run in a studio environment but capable of running outdoors.
/Near silent operation.
/Winches can be mounted near the ceiling
/Top Speed up to 4 m/s
/Flying area of approx 72m x 72m
/WINCHES
Four winches control the gimbal movement. Each winch holds 100m of cable with independent internal safety protocols. They can be mounted either on the ceiling or on the floor. They allow a flying area of up to 100m diagonal or areas such as 90m x 43m or 72m x 72m.
/CONTROLS

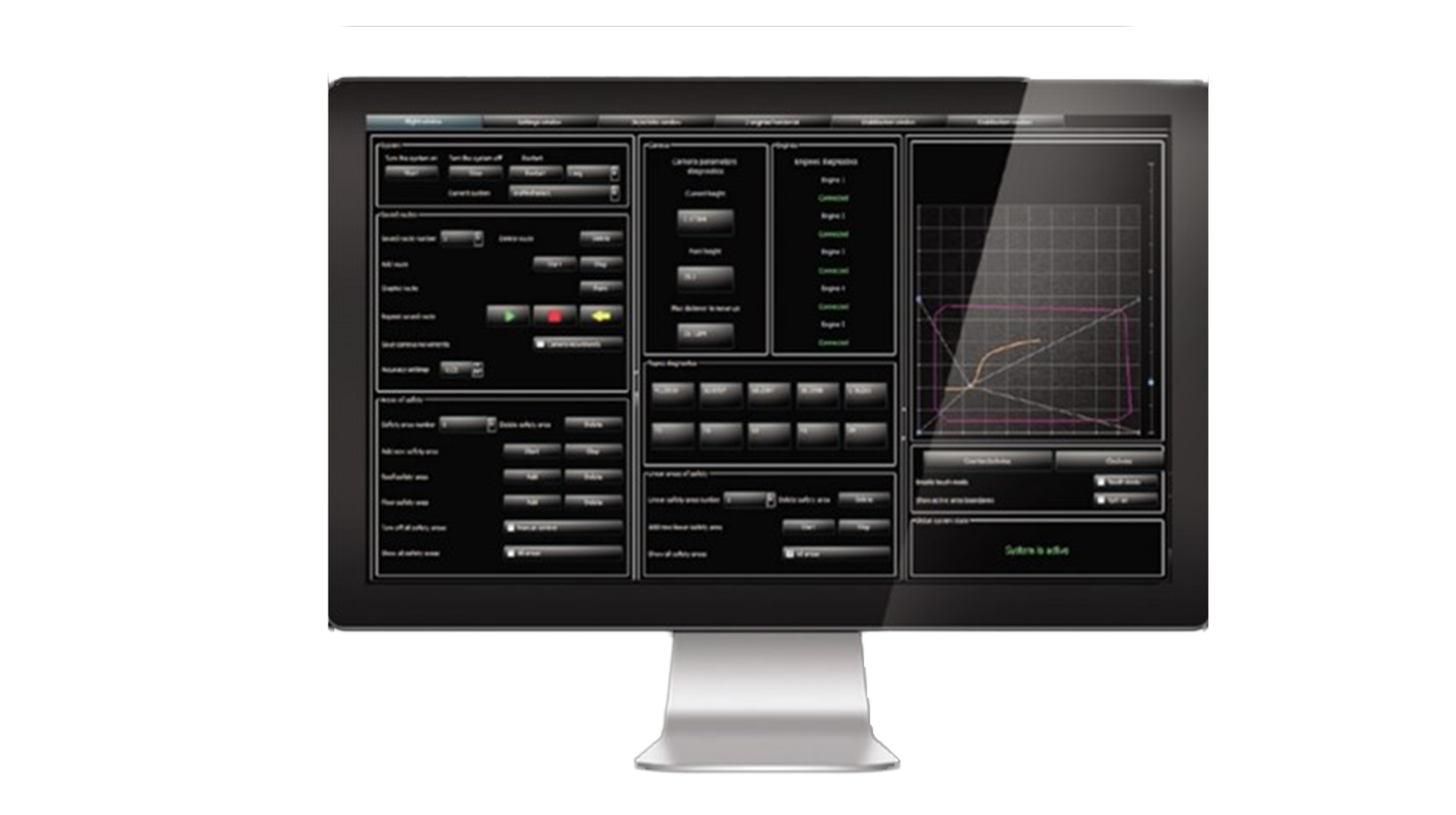

The control station and winches communicate with each other via the cables. This allows interference free real time communication. the control station allows a single operator or a team to have complete control of all necessary system functions and controls.
/SMART
The software is the smarts of the system with multiple safety controls operating continuously to ensure the system is operating safely. You can have up to 300 memory presets in more than 30 locations. You can cut, edit and record about 450 paths of movement. This enables you to choose between different paths and initiate them quickly while creating a safe operating area. The flight accuracy of a programmed move is within 5 cm.
/CAMERA
The Studio system does comes with the GS200 which is an integrated HD/4K camera with 3-axis stabilisation in a weatherproof & rugged carbon fibre case. It has full CCU Control with Genlock. A 20x (HD) or 18x (4K) optical zoom. Slip Rings for continuous rotation. IP control option. There is an option to use any broadcast camera up to 8kg.
/SETUP AND RIGGING
The camera is able to move about the studio by changing the length on the various winches. The winches can be mounted either up high or on the floor. Installation is about 12 hours with 1 or 2 people.
SPECIFICATIONS
WINCHES
Winch weight: 95kg
Power consumption: 2 kw - 380V 3 Phase
Max.operating diagonal: 100m
Time to mount in studio: 12 hours
Payload: 30kg
Max camera weight: 8 kg
Max speed: 4 m/s
Size: 0.5m(W) x 0.36m(H) x 1.1m (D)
Can withstand 9,500N of force for each of 4 cables – more than 12x the force occurring during normal operation
Mounts on floor or ceiling
Retains most of its strength at temperatures ranging from -40°C to +100°C.
/CONTROLLER
The control station allows a single operator or a team of two to have complete control of all necessary system functions and controls.
Safety protocols operate in the background continuously to ensure the system is operating safely.
Up to 300 memory presets in more than 30 locations.
220V 1kW single phase power supply.
Height: 293mm
Diameter: 200mm
Weight: 5kg.
Power: 12 – 48v 30w (HD), 40w (4K)
Operating Temp: -10 to +40degC. Out of sunlight
Environmental: IP65 minimum
Pan Range: 360deg. Continuous.
Tilt Range: +/- 120deg from vertical.
Positional Accuracy: 0.0055deg.
HD Sensor: Panasonic 1/3 CMOS, 1944(H) x 1213 (V)
4K Sensor: Sony ½” CMOS, 3840(H) x 2160 (V)
Signal / Noise Ratio HD >50dB
Zoom HD: 20x optical
Zoom 4K: 18x optical
/Safety
The safety systems come first to provide a high level of confidence and consists of three phases.
First level (Software control):
There is programmable protection zones.
You program all of the controls, from joysticks to winches (reliability control).
Program control of power supply.
Program control of engine top power.
Second level (Operator control):
The operator can always stop the system by pressing the emergency button.
The operator can track any possible mistakes in the system on the computer.
Third level (Winch control):
All winches have magnet brakes, which stops them if the winch loses the signal.
If any cable is cut or unplugged during the operation, the system stops working.
If the computer fails, the system stops working.
The winches have set parameters for incoming power and stop if they exceed the set level.
After losing the signal or the power supply, the system won’t start again unless a safety check is done on all the winches.
