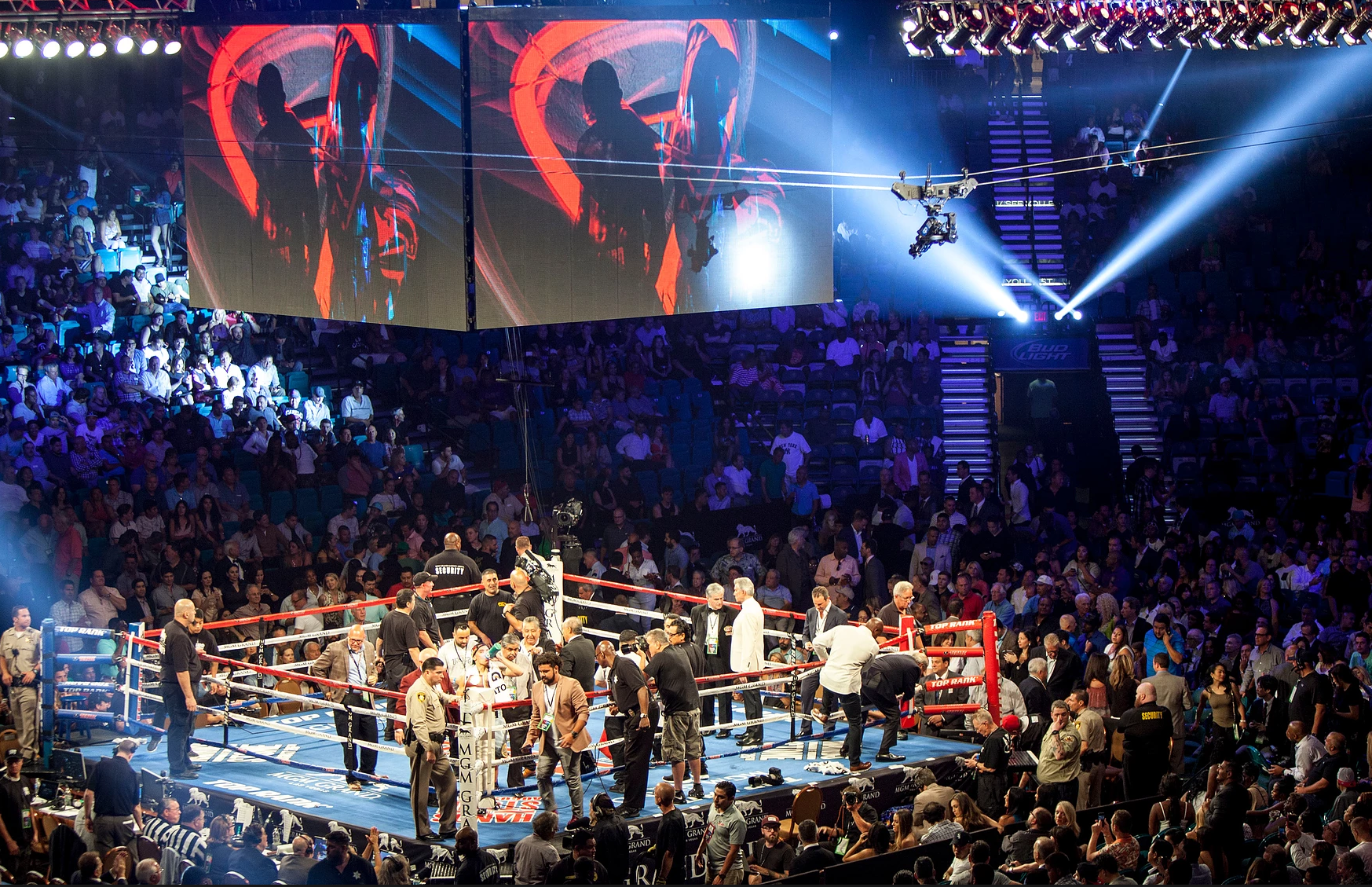

/Built for live broadcast environments such as sport and live event coverage.
/The Dactylcam Pro is Simple, Safe, Smart, and incredibly powerful.
/No winches required and totally wireless
/Both camera and dolly can be operated by one person
/Uses a GS200 from Bradley Engineering
/POWERFUL
48v power drive system capable of 100lb payloads and speeds up to 30 mph. With dual batteries, run time can exceed 8 -10 hours and system health is consistently monitored from the Pulse controller.
/SAFE
The Dactylcam Pro has multiple safety redundancies allowing the sled to safely operate over crowds, stages and extensive set designs. Digital Safety Stops selected by the user automatically stops the system which keeps the operators attention on the shot.
/SMART
Users program and operate from the Pulse Controller which is a wireless ergonomic handset that controls power usage, digital end stops, acceleration, top speeds as well as a menu for customized user preferences.
/GS200
The Dactylcam comes with an integrated HD/4K camera with 3-axis stabilisation in a weatherproof & rugged carbon fibre case. It has full CCU Control with Genlock. A 20x (HD) or 18x (4K) optical zoom. Slip Rings for continuous rotation. IP control option
/SETUP AND RIGGING
Determine the neccesary height of the camera lens from ground level. The line slack is then calculated based on height and the maximum load of mount points. Less slack means a higher tension load. Up to 2 x 900m lines are used for the installation of our sled.Rig time should take no more than half a day and take only 2 people
SPECIFICATIONS
/dactycam pro
Power input: Dual 48V Li-ion, 11.5 Ah
Accessory power: 24v Li-Ion pack
Wireless frequency: 915mhz or 868mhz
Max Wireless Distance: 2km
Max degree of climb: 20 degrees
Camera mount: Standard Mitchell mount
Operating temperature: -20o to 45o C
Max Line Length: 900 metres
Dtap output voltage: 14.8v nominal / 10 amp max
/PULSE CONTROLLER
Power input: Dual 48V Li-ion, 11.5 Ah
Accessory power: 24v Li-Ion pack
Wireless control frequency: 2.4Ghz, 915mhz or 868mhz
Max Wireless Distance: 2km
Max degree of climb: 20 degrees
Camera mount: Standard Mitchell mount
Operating temperature: -20 to 45 C
Foot controller for single person operation of sled and camera gimbal
Height: 293mm
Diameter: 200mm
Weight: 5kg.
Power: 12 – 48v 30w (HD), 40w (4K)
Operating Temp: -10 to +40degC. Out of sunlight
Environmental: IP65 minimum
Pan Range: 360deg. Continuous.
Tilt Range: +/- 120deg from vertical.
Positional Accuracy: 0.0055deg.
HD Sensor: Panasonic 1/3 CMOS, 1944(H) x 1213 (V)
4K Sensor: Sony ½” CMOS, 3840(H) x 2160 (V)
Signal / Noise Ratio HD >50dB
Zoom HD: 20x optical
Zoom 4K: 18x optical
